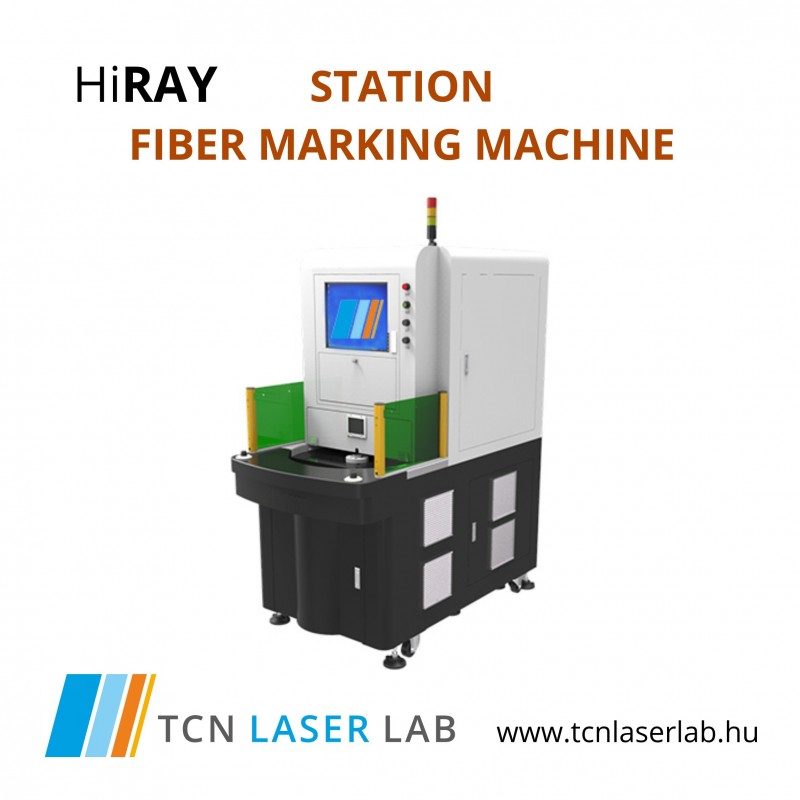

HiRAY Station FIBER Marker

Tax excluded

Szerviz és Garancia

Kiszállítás

Betanítás

Features

1.Enclosed protection cover, free of laser radiation and easy for fume exhaustion;

2.Easy to switch the jig to suitable for different types processing;

3.Separate working area, and picking area, available for 2 stations or 4 stations, much efficient.

Technical Parameter

Model	HiRAY Station Fiber marking machine
Laser power（W）	20/30/
Working area(mm)	200 × 200/300 × 300
Overall dimension(mm)	1450 × 950 × 1750Belt line (optional)1500 × 350 × 850
Repeated positioning accuracy(mm)	≤±0.005
Speed (mm/s)	0~7000
Supply voltage	AC220V±10%,50Hz
Weight(Kg)	200 Estimation
Work environment	Clean, less dust,Temp:10~35°C, Humidity:5~85%
Gross power(KW)	1.5 auxiliary machine excluded
