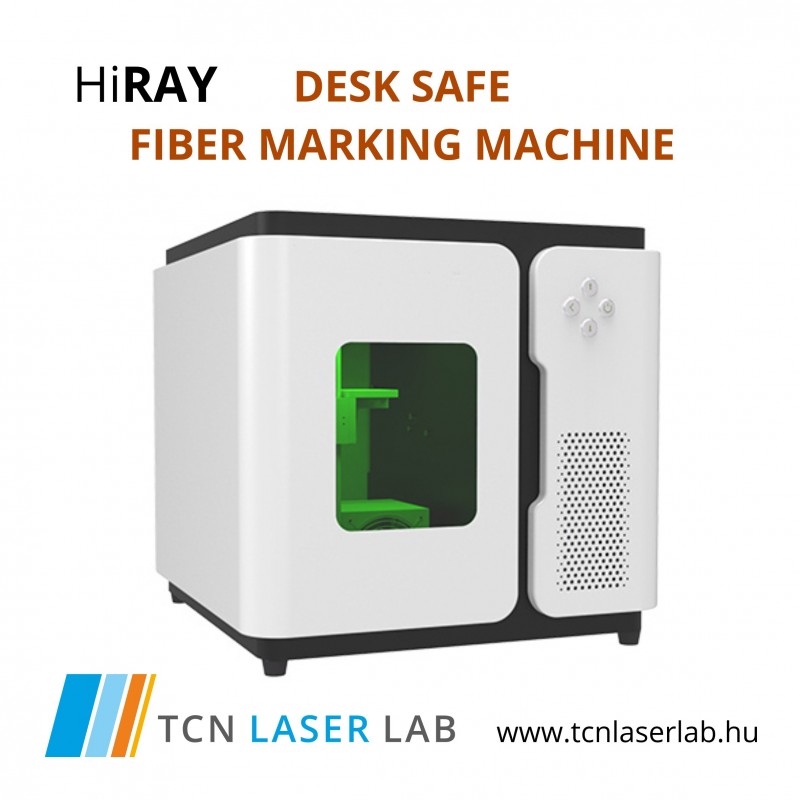

HiRAY Desk Safe FIBER Marker
Tax excluded
Szerviz és Garancia
Kiszállítás
Betanítás
Features
1.Highly integrated design to reduce the overall dimension, 175mm* 175mm large marking area, compatible with mini rotation device;
2.Electric focusing, double red light locating focus, easy to operate, effectively improve the processing accuracy and speed;
3.Fully enclosed design: prevent the laser radiation and smoke & dust pollution; Observation window and opening door protection switch; Conform to CE safety certification standards;
4.Embedded Industrial Computer: space saving, stability, efficiency. Connect to computer, plug and play. Laptop is optional, USB port to plug and play;
5.High quality fiber laser generator and scanning galvanometer: stable laser power, small focusing spot, high marking speed, good marking result, efficiency, suitable for mass production;
6.Powerful software: compatible with AutoCAD, CorelDraw, Photoshop, etc.; Support PLT, Ai, DXF, BMP, JPG, etc.; Support SHX, TTF character and various single built-in font library; Support variable number, barcode, 2D barcode, serial port and network communication, scanning gun marking, etc.
Technical Parameter
| Model | HiRAY Desk Safe Fiber marking machine |
| Laser power | 20w/30w |
| Working area(mm) | 110 x 110 / 175 x 175 |
| Overall dimension(mm) |
560 × 600 × 540 |
| Repeated positioning accuracy(mm) | ≤±0.005 |
| Speed (mm/s) | 0~7000 |
| Supply voltage | AC220V±10% ,50Hz/60Hz |
| Weight | 60Kg |
| Work environment | Clean, less dust,Temp:10~35°C, Humidity:5~85% |
| Gross power(KW) | ＜0.6 |
